Low Cost Carbon Steel Pipe Making Machine
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||45 Days|
|Place of Origin:||China|
|Supply Ability:||25 sets/month|
Model No.: ZT-002
Low cost carbon steel pipe making machine is also called high frequency welded pipe making machine. We use advanced welding technology and offers training service for enhancing speed, higher deposition, superior mechanical properties and quality. Zhongtuo steel pipe/tube making machine is widely applied for producing tubes for Heat Exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc.
Low cabon steel corrugated steel pipe making machine or welded pipe mill composes following elements like, single or double decoiler, leveling part machine, coil accumulator, coiler feeds, shearing and bead weld device, accumulator, tube mill section, track flying saw and runout table.
Service for Low cost carbon steel pipe making machine
For catering to continuously ever-changing challenges of pipeline construction, Zhongtuo provides various sizes pipe customization services, including engineering, onsite technical support and equipment training. We own high-precision equipment lines for welded pipe mills. After machine delivered, we will help customers to train users till they know how to use machine well.
Working Process of Low cost carbon steel pipe making machine
Technical Specifications of Low cost carbon steel pipe making machine
Model HG32 tube mill line Diameter of Welded Tubes Φ10 mm to 127 mm Wall Thickness of Welded Tubes 0.4 mm to 4.0mm Speed of Tube Welding 30 to 90 m/min Power of Major Motor 110 KW × 2 Power of High Frequency Welder 350 KW
HG32 tube mill line
Diameter of Welded Tubes
Φ10 mm to 127 mm
Wall Thickness of Welded Tubes
0.4 mm to 4.0mm
Speed of Tube Welding
30 to 90 m/min
Power of Major Motor
110 KW × 2
Power of High Frequency Welder
1. Low energy consuming. Different with other machine, we have improved HF Weldeder part, the current of this part could be lowerd down in great degree.
2. Lettering function, Our machine allows you to add company logo or simple words on the output pipes.
Main technical parameters:
coil inner diameter:450-550mm coil max width:300mm 3.max carrying capacity: 1500kgUsage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system
Usage:Put the raw material(steel plate) through the beach to manufacture and
process,it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
Main roller system:
1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm 2. power: 101kw 3. Transport; Motor; chain drive 4. Forming speed; 20m/min Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components:It contains one set of blade, one hydraulic tank and one cutter machine.

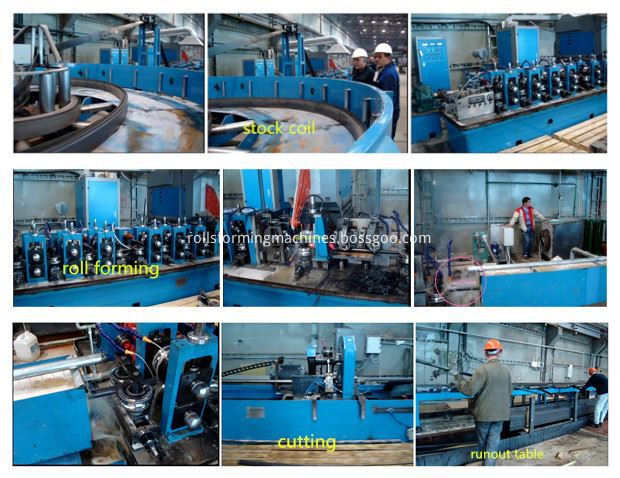

Working flow in pictures:
Check details of the machine from the following pictures:
Cangzhou ZHONGTUO roll forming machinery is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines. The company cooperates with several production factories and associated enterprises.
Engineers and technicians are rich in experience of designing, developing, and manufacturing of machines. We pay close attention to new trend of technologies. All products comply with international quality standards and are greatly appreciated in markets throughout the world.
