easy maintenance distiller's grains dewatering machine separator/spent grains dewaterer machine/grain mash dehydrator
easy maintenance distiller's grains dewatering machine separator/spent grains dewaterer machine/grain mash dehydrator
Unit Price: | 3000~20000 USD |
---|---|
Min. Order: | 1 Set/Sets |
Packaging: | Plywooden case for expired food shredding and dewatering recycling system |
---|---|
Supply Ability: | 100 Set/Sets per Month expired food shredding and dewatering recycling system |
Port: | Qingdao,Shanghai |
Product Description
easy maintenance distiller's grains dewatering machine separator/spent grains dewaterer machine/grain mash dehydrator Product Description Introduction of distiller's grains dewatering machine separator Food waste recycling machine is widely used to press fibrous materials,such as fruit, vegetable,straw,food kithen waste,DDGS,Grain,etc.It pressed by double screw,through different direction,Screw Press juice or liquid separate from solid.
1.Fruit:Fresh Grape,fermentation of grape pomace, sea buckthorn fruit, aloe (Black currants, red currants, gooseberries,sea buckthorn fruit) apples, pears, sweet potatoes, potatoes, pineapple, mulberry (a success), blueberries, sea red berries, red bayberry, kiwi fruit, pepper, aloe, papaya, juice of flowers (such as peony flower) and a variety of berries and other fruits and vegetables fermented berries slag, sludge secondary fruit winery press. Can totally replace the complex, cumbersome, failure-prone belt press machine; and not continuous frame. 2.Vegetables Ginger,celery,pepper,cassava,Chinese cabbate,carrots, garlic,onions,pumpkin, broccoli, cabbage, mushrooms,etc. 3.Kitchen food waste Residues Cassava residues,wheat,grain,rice,residues,DDGS residues,wine waste,etc. Coconut husk, dregs, rice lees, fine tea leaves, vinegar bad,starch or , and after coffee extraction residue, wheat bran, soybean residue, corncob residue after fermentation, cornmeal, corn residue,kitchen waste,various garbage dewatering and separate.

Advantages of distiller's grains dewatering machine separator
1.Slow juice machine with high pressure,better quality T shape or round hole stainless steel screen.
2.Screen quality is more better than speed one.
3.Adapt to more kinds of material than speed one.
4.Juice effect better than speed type.
5.Especially better for high fiber material,slide material,herbs,residues,etc Technical data Technical data of distiller's grains dewatering machine separator

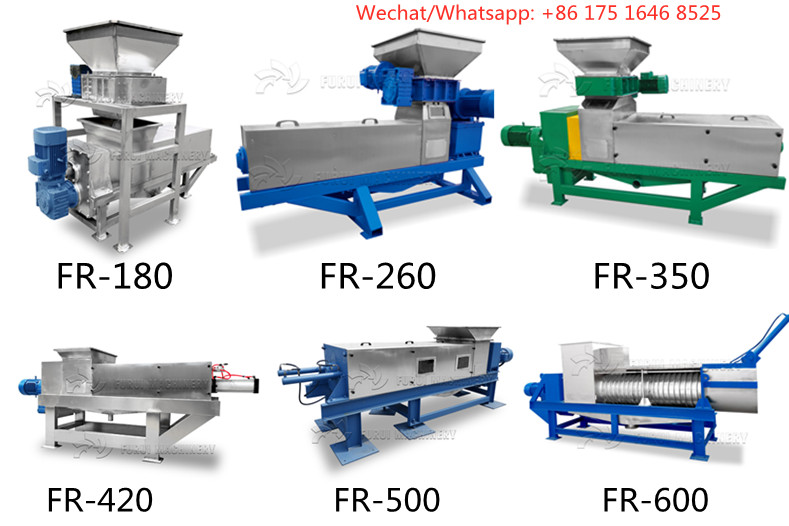

Detail photos





contact information If you want to get more information, pls contact with us feel free.
Contact us if you need more details on Distiller's Grains Dewatering Machine Separator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Spent Grains Dewaterer Machine、Grain Mash Dehydrator. If these products fail to match your need, please contact us and we would like to provide relevant information.



1.Slow juice machine with high pressure,better quality T shape or round hole stainless steel screen.
2.Screen quality is more better than speed one.
3.Adapt to more kinds of material than speed one.
4.Juice effect better than speed type.
5.Especially better for high fiber material,slide material,herbs,residues,etc Technical data Technical data of distiller's grains dewatering machine separator
Pressing machine | FR-180 | FR-260 | FR-350 | FR-420 | FR-500 | FR-600 | |
Capacity | 0.2-0.5t/h | 1-1.5t/h | 1.5-3t/h | 3-5t/h | 6-10t/h | 10-15t/h | |
Conveyor screw | Dia. | 180mm | 260mm | 350mm | 420mm | 500mm | 600mm |
Screw distance | 100mm | 150mm | 200mm | 210mm | 280mm | 280mm | |
Speed | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | |
Press screw | Dia. | 180mm | 260mm | 350mm | 420mm | 500mm | 600mm |
Speed | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | |
Hydraulic pressure | spring adjustment | <6Mpa/0.5kw | <6Mpa/1.1kw | <6Mpa/1.5kw | |||
Power | 3kw | 5.5kw | 7.5kw | 11kw | 18.5kw | 22kw | |
Dia.of screen | 190mm | 270mm | 360mm | 430mm | 510mm | 610mm | |
Size | 170*50*80cm | 220*60*90cm | 350*70*100cm | 358*100*147cm | 374*120*165cm | 430*130*165cm | |
Weight | 550kg | 900kg | 1300kg | 2600kg | 3050kg | 4300kg |
